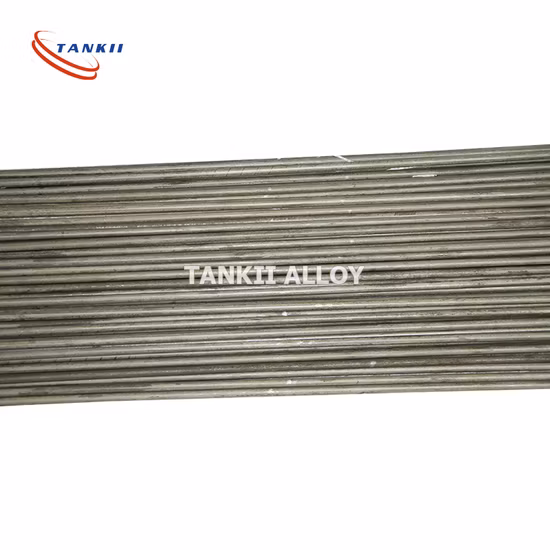

H41XT Elastic alloy bar Ni42CrTi

Basic Info.

Model NO.	H41XT
Melt temperature range	1440~1480C
Use	Elastic sensitive element
Thermal conductivity	12.98
Density	8.1g/cm3
Transport Package	Wooden Case
Specification	20*1000mm
Trademark	Tankii
Origin	Shanghai
Production Capacity	3000 Tons/Year

Product Description

H41XT Elastic alloy bar Ni42CrTi
H41XT belongs to Fe - Ni - Cr - Ti is ferromagnetic precipitation strengthening constant elastic alloy.
After solid solution treatment, plasticity is good, hardness is low, easy to processing molding.
Solid solution or after the cold strain aging treatment, reinforcement and good constant elastic properties.
H41XT alloy with small temperature coefficient, high mechanical quality factor, good wave velocity uniformity, high strength and modulus of elasticity and smaller elastic aftereffect and lag, low linear expansion coefficient, good processing properties and good corrosion resistance and other excellent properties.
H41XT alloy is more used for elastic sensitive element

Chemical composition %

C	Mn	Si	P	S	Ni	Cr	Ti	Al	Fe
≤0.05	≤0.80	≤0.80	≤0.02	≤0.02	41.5~43.0	5.2~5.8	2.3~2.7	0.5~0.8	Bal

Style of supply

Alloys Name	Type	Dimension
H41XT	Wire	D= 0.1~8mm
	Strip	W= 8~250mm	T= 0.05~3.5mm
	plate	W= 10~100mm	T= 0.1~7mm
	Bar	Dia= 8~100mm	L= 50~1000

H41XT alloy obtained widely used in aviation.
Is mainly used for tension, pressure, bending stress of elastic sensitive element and longitudinal moment or bending vibration mode of the frequency components, for example, require constant elastic modulus (or frequency) of all kinds of sensor, pressure sensor, signal torque and around sexual curtilage screw around the top;
Can also be used to produce the film box, diaphragm, shock tube, corrugated tube, precision springs, pieces of silk, super mechanical filter, etc

H41XT Elastic alloy bar Ni42CrTi
